Basic Boat Info
Type: 58m Sloop with lifting keel
Naval architect: Dubois Naval Architects
Exterior stylist: Dubois Naval Architects
Interior design: Rick Baker Ltd.
Project mgt: Godfrey Cray Maritime Ltd.
Builder Royal Huisman, Netherlands
Year of delivery 2017
Registered: British (Jersey) Registered
VAT: Not paid
Length 58.15 m / 190.3 ft
Length waterline 51.20 m / 167.9 ft
Beam max. 9.54 m / 31.3 ft
Draft keel up 5.30 m / 17.4 ft
Draft keel down 8.10 m / 26.2 ft
Displacement 353 tons / 778,231 lbs
Max air draft: 75m / 246 ft
Gross Tonnage: 396
Hull speed: 17 knots
Private Pleasure Yacht
Lloyd's Register 100A1, SSC, YACHT, MONO, G6 (5 year survey completed Apr22)
LMC, UMS-LY3 (MCA)
Yacht Ngoni is built to comply with the Large Commercial Yacht Code (LY3) but operated as a private yacht only
Alexseal Yacht Coatings ‘Claire de Lune’ & Grey hull paint RAL7035
Jotun black antifouling
All aluminium hull and deck
5083 H321 for hull and deck plating. "Alustar"
5059 H321 for high loaded areas
internal structure and profiles."Alustar" 5059 H112 for extrusions.
6 x watertight bulkheads
Hydraulically operated T-style lift keel by Brandjes (2.80 m/ 9.2 ft stroke)
Total keel weight = 93T
MTU 8V2000M72, 720 kW (966hp) @ 2250 rpm; rating: 1B for (high load factors)
Hours run: 3509 (May21)
Gearbox and propeller - ZF 3310, Hundested VP10 controllable pitch propeller
Propeller diameter 1600 mm with 4 blades
Range at cruising speed 4000 nm @ 12 knots
2 x Northern Lights M 1064A, 70 Kw each
Hours: 6072 + 6082 (May21)
Fuel: 30,307 litres / 8006 USG (7 tanks)
Fresh water: 10,000 litres / 2641 USG
Waste water: 7,000 l / 1849 USG
Fuel system Custom made by Royal Huisman, Facet fuel separator.
Tender fill system Gianneschi tender fuel pump. Flexibimec hose reel
Hamann HL Cont PLUS 02 Slim Sewage Treatment plant
Capacity 5200 litres (1373 USG) / day
HEM 30/3400 13,000 litre capacity (3434.24 USG) per day
Bilge system Royal Huisman central bilge system. Oily water separator, RWO Veolia OWS-COM 0.1 m3/hr
Bow thruster Hydrosta, 110 kW
Stern thruster Hydrosta, 110 Kw
GROUND TACKLE & WINDLASS
Underwater anchor system on centreline fore & aft of each other
2x hydraulic anchor winches by Steen
178 metres chain per anchor
2x Manson anchors type Pool N = 380 kg (838 lbs)
2x Rondal anchor stoppers
Manual steering system without power assistance and hydraulic steering system.
Simrad Autopilot system.
Rondal balanced carbon composite spade rudder (6.95m2/ 75ft ²)
Thermal and acoustic insulation in accommodations by means of Melamine foam. Fire protection insulation in galley, engine room and around petrol locker by means of Isover mineral wool. Anti-drumming on ER bulkhead and ventilation, above propeller, outside ER ventilation.
Royal Huisman seawater fire-fighting system.
FirePro fire extinguishing system for engine room
Royal Huisman / Parker main hydraulic system
Junair air compressor OF1201.
Junair air dryer CRDC54.
Kahlenberg air horn
Bauer Mariner 250-E diving compressor
HVAC MAR-IX system with chiller units
307,000 BTU = 90 kW and fancoils, fresh air system
230/400 VAC - 50Hz parallel, 3-phase and single phase electrical system.
Main switchboard with power management & paralleling system.
Emergency power system / 2x set of 2 starting batteries / 1x set of 2 radio batteries.
Shore converter 60 kVA.
Systems supplied by Tijssen Elektro, Alewijnse, Eekels, Valence, Victron.
2 x Furuno Radar
Furuno Chart plotters
Sailor Gyro compass
Navtex weather receiver
Sailor Satcom C
Sailor 2x SSB transceiver
2 x VSAT I Sailor 800
Ngoni sleeps 6 guests in 3 staterooms
Owner’s master suite with separate study and gym
1 Double guest cabin and bathroom
1 twin guest cabin and bathroom
Crew 9 berths in 6 cabins (Captain’s cabin, 2 single berth cabins and 3 twin bunk cabins.
All crew cabins have en-suite bathrooms
AUDIO VISUAL EQUIPMENT:
Kaleidescape audio and video system
Samsung UHD TVs
Apple RTI room control
ALARM & MONITORING
Royal Huisman Alarm & Monitoring system

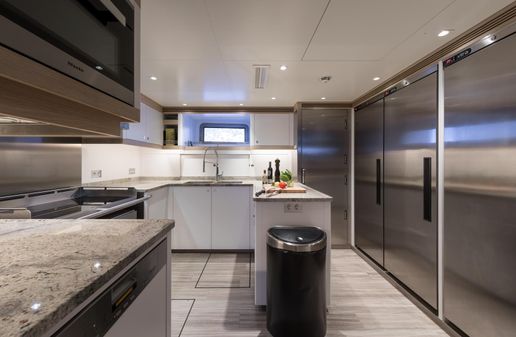

GALLEY & LAUNDRY
Appliances from Miele, Foster, Vitrifrigo, Liebherr and Hoshizaki
REFRIGERATION & FREEZERS
Frigonautica custom made cold store.
Cooling system with Foster refrigerator and freezer boxes
FURNISHINGS & INTERIOR
Interior design by Rick Baker Ltd - in 2018 ‘Ngoni’ won “Best Interior” from the International Superyacht Society Awards of Distinction at the Fort Lauderdale Boat Show
Interior Manufactured in-house by Royal Huisman as per the contemporary style of Rick Baker Ltd.
Walls and furniture produced with special finished surfaces, Tabu and Alpi veneers and Wengé door frames, skirting and floors.
Crew styling as per Royal Huisman standard with white HP laminate walls and furniture with oak wood details. Floors in Amtico
Ceiling panels, sofas, blinds and curtains by Zijlstra.
Furniture and wall panels, headboards and leather work by Cools Upholstery
Deckhouse sofa and loose chairs by Francis Sultana Carpets and M. Ronson Contracts Ltd.
Exterior cushions and mattresses by Telstar Marine
Interior lights Lighting plans and armatures by The Light Corporation
Special finishes by Officina Coppola, Page Lacquer
Hand painted marble shower door by Davique
Custom door handles by J.C. Birtles
INTERIOR CERAMICS & STONE
Basins and bath by Stone Natural Class
Bathroom floors by Stone Natural Class
Galley counters by Stone Natural Class
CRANE & BOARDING LADDER
Deck Crane by Nautical Structures
Royal Huisman hydraulic boarding platform
Side gangway Hydraulically operated [by Cramm]
Cramm Passerelle / bathing platform Hydraulically operated & carbon fibre passerelle with
self-levelling steps and platform
Below deck hardware by Rondal
Custom deck hardware by Harken
Rondal custom flush deck hatches
Royal Huisman custom waste locker.
Rondal captive reel winches with electrically-driven variable speed feeders.
Harken drum deck winches
MAST & SPARS
71 metre (233ft) Rondal carbon fibre mast with halyard locks and internal tang system.
24 metre (79ft) Style-to-order performance furling carbon boom by Rondal
Auto detaching and attaching mainsail square top gaff batten
Composite continuous standing rigging by ‘Carbo-link’
Doyle running rigging package
North Sails 3Di Mainsail
North Sails 3Di No.2 Jib
North Sails 3Di No3 jib
North Sails Code Zero
North Sails A2 spinnaker
North Sails 3Di Staysail (for removable inner forestay)
Mainsail 853m2 / 9,182ft2
Blade 687 m² / 7,395 ft²
Solent 305 m² / 3,283 ft²
Code 1097 m² / 11,808 ft²
Gennaker 2240 m² / 24,111 ft²
Total up wind 1950 m² / 20,989 ft²
Total down wind 3093 m² / 33,293 ft²
I = 66.00 m / 216.5 ft
P = 63.78 m / 209.3 ft
E = 20.30 m / 66.6 ft
J = 19.95 m / 65.5 ft
Williams 565 Tender Diesel Jet tender in recessed bow garage
Crew tender - Bombard commando C3 & 15HP outboard
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
